Overview of the KEIDEL Software

Suitable for Different Pipe Systems

You can calculate an unlimited number of different pipe systems. To do this, you only need the inside and outside diameters and the permitted operation pressure.

Which roof outlets can you use?
You will enter only the following product data: Flow capacity, zeta value, inside and outside diameters as well as length of the connecting pipe.

Rainfall Data: You can enter the local rain data in the software, wherever in the world a project may be located.

Which Roof Drains Can You Use?

You will enter only the following product data: Flow capacity, zeta value, inside and outside diameters as well as length of the connecting pipe.

Rainfall Data

You can enter the local rain data in the software, wherever in the world a project may be located. Rainfall Data You can enter the local rain data in the software, wherever in the world a project may be located.

Personalisation

Company logo, full company name and address.

Parts lists, Cost Calculation

The parts lists contain the calculated dimensions of the pipes, fittings, and drains. For the cost calculation the products can be provided with prices and discounts. Missing details may be added to the Excel export parts list, if required.

Excel Export Interface

Parts lists and Cost Calculation can be exported with the integrated Excel interface.

CAD Export Interface

Use the DXF interface developed by Autodesk to export the isometric drawing from the KEIDEL software.  The user can make changes to the layer names and the line colours of the pipework. Example: Blue for the main drainage and Red for the emergency overflow pipework.  The pipework can be imported directly into the CAD drawing as a top view.

EMF Format Interface

Use the interface developed by Microsoft and integrate the isometric drawing from the KEIDEL software into MS Office documents.  Or follow the example of our customer and import the drawing into your CAD software: Complete the drawing with additional details and the installers will be thrilled!

PDF Interface

Send all print-outs simply and comfortably with the built-in PDF interface!

BBA Certification

Follow the example of our customer Maxflow and certify your version through the British Board of Agreement (BBA).

Easy To Learn And Simple To Use

– and therefore suitable for beginners as well as professionals.

Speed

– Design 5,000m2 in 25 minutes. With the clear functions, design and calculate a pipework in minutes, including hydraulic calculation, isometric drawing, CAD top view drawing, material list, and cost calculation.

Work Anywhere

in the world with the KEIDEL Software – The KEIDEL Software is compact.  All the functions you need are implemented.  No CAD software is required.  You can create and export an AutoCAD top view drawing by pushing a button.

Installers Love our Isometric Drawing

Our isometric drawing is particularly popular on the construction site because it is handy and clear.

Up-to-Date

The Keidel software is regularly updated.  In addition to local installation on your computer, the software is also available as a USB stick version or via the internet as a Cloud version.

Protect Your Work from Misuse

If the project is still secret, you can hide the diameters and the pipe length in the isometric drawing and thus protect your work from misuse during preliminary planning.

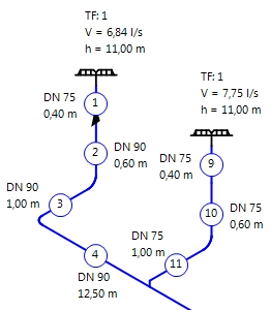

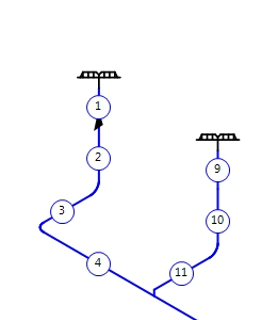

Your isometric drawing with full data, and without data.

The KEIDEL Software has Two Calculation Tools

  • The Balance Tool creates the hydraulic calculation and dimensions the pipework and is ideal for the pre-calculation.
  • *The Simulation Tool simulates the actual drainage capacity at each roof outlet and shows you where, for example, overloading of the roof surface is probable. This feature also makes it easier to fine-tune the drainage capacity at each roof drain to minimize noise. This tool is a must-have for execution planning.
*Only available at KEIDEL Software

Please refer to your contract documents to find out which feature is included in your software.
